PTFE SLEEVE

PTFE SLEEVE, PTFE SLEEVE manufacturer,

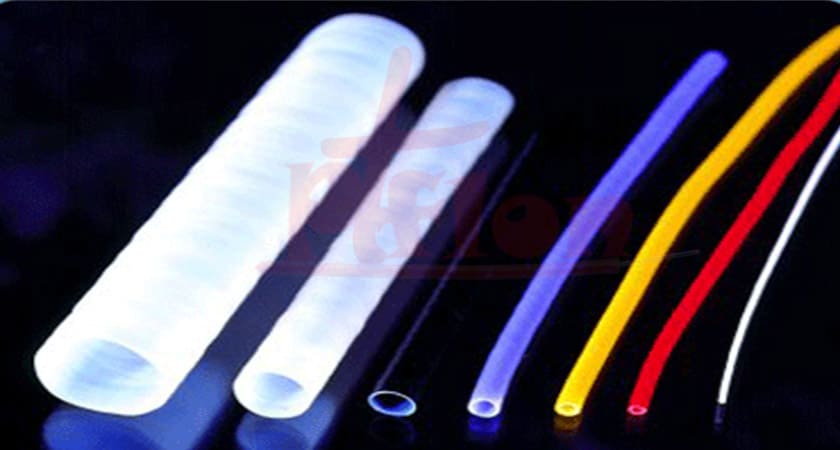

PTFE SLEEVE

ptfe sleeves manufactured as per MIL-1-22129 or JSS 54802 are for use in Electrical, Electronic, Chemical, Mechanical & other industries. PTFE Sleeves are inert to almost all chemicals, Oils, Fluxes etc. Wide temperature range from - 200°C to 260°C, long flex-life and high burst-strength. Smooth internal surface of PTFE sleeves allow closer fits. Can be offered with connector assemblies we are leading manufacturer of ptfe sleeves (ptfe sleeves). This PTFE sleeves (ptfe sleeves) is highly resistant to chemicals, acids, fire, moisture and sunlight. we offer wide range of ptfe sleeves (ptfe sleeves) in size and colors


TECHNICAL SPECIFICATION OF PTFE SLEEVE

PTFE INSULATED SLEEVING CHART
  Inner Dia Wall Thickness Overall Diameter JSS Type
1. 0.5 0.25 1.0 SED 01
2. 0.75 0.25 1.25
 SED 02
3. 1.0 0.3 1.6
 SED 03
4 1.5 0.3 2.1

5 1.5 0.4 2.3
 SED 04
6 2.0 0.4 2.6

7 2.0 0.4 2.8
 SED 05
8 2.5 0.4 3.3
 SED 06
9 3.0 0.5 3.8
 SED 07
10 3.5 0.5 4.5
 SED 08
11 4.0 0.5 5.0
 SED 09
12 5.0 0.5 6.0
 SED 10
13. 6.0 0.5 7.0
 SED 11
14 7.0 0.5 8.0
 SED 12
15 8.0 0.5 9.0
 SED 13
16 9.0 0.5 10.0
 SED 14
17 10.0 0.5 11.0

18 12.0 1.2 14.0
